Combining dehydrating, charring and foaming agent, NP-FR-3000 is a new generation of flame retardant with excellent
performance in heat and water resistance.
I. Advantages：
1. Dosage: 20-25%. Flame resistant polypropylene: 1.60mm V-0.
2. Excellent performance in heat and water resistance. Polypropylene modified by NP-FR-3000 has no plate-out or blistering after being tested in 30 days at 85℃, 90% relative humidity.
3. Improving more than 20% of mechanical.
II. Technical Index:
Appearance

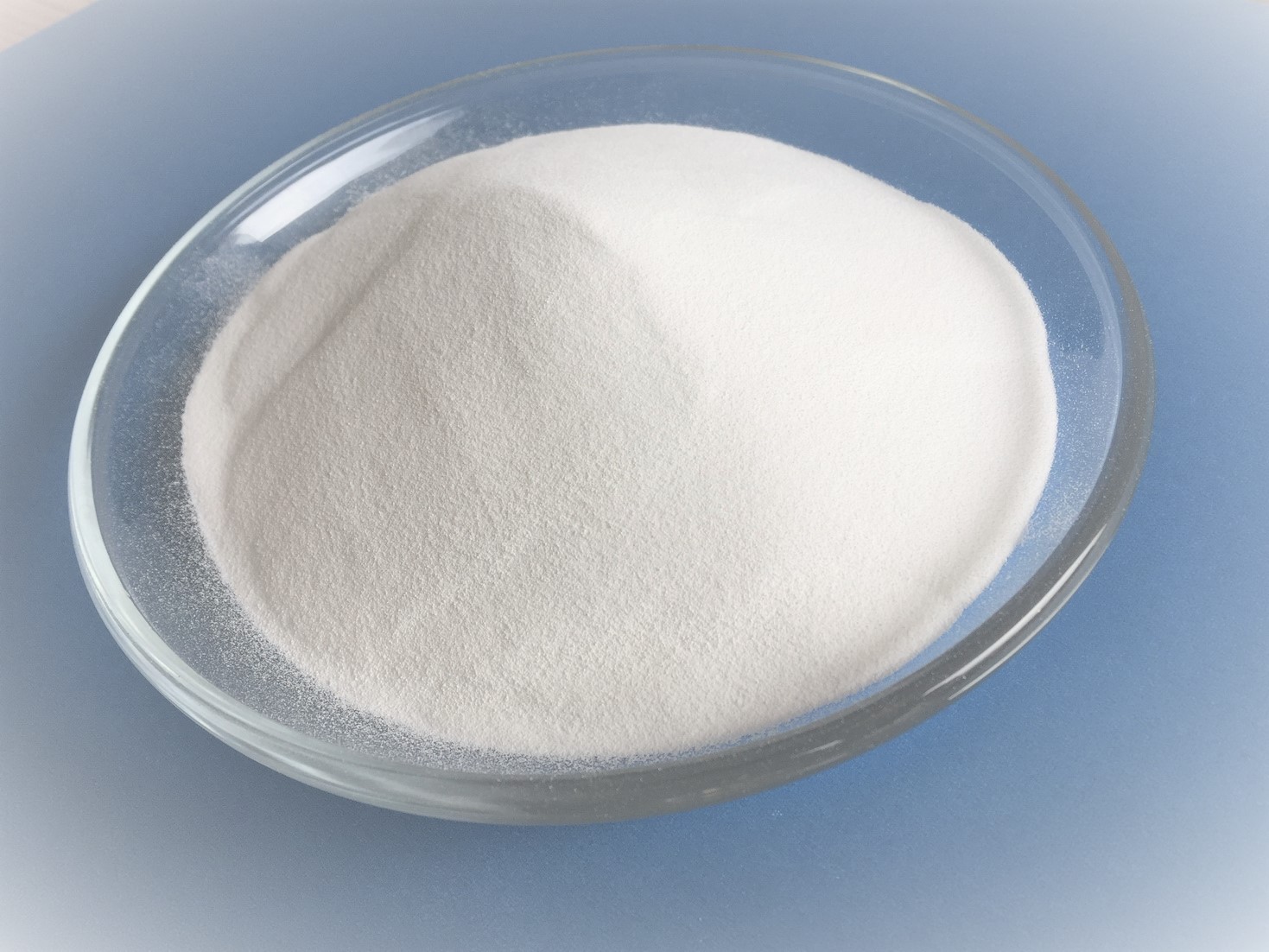

White powder
Specific gravity
1.77-1.79（23℃）
Nitrogen content
18-24%
Phosphorus content
16-22%
Decomposition temperature
>280℃
Grain size
≤25μm
PH
3.0-5.0(10% suspension in water at 23℃)
III. Typical formulation:
Dosage in UL-94 V-0 PP(thickness: 1.6mm) with 0.2% PTFE anti-drip.
Flame Retardant
Dosage in UL-94 V-0 Level(wt%)
homo-PP
co-PP
APP system
25-28
28-32
NP-FR-3000
20-22
22-24
[Processing Condition] Extrusion pelletization:200oC, 350 rpm (30mmφ twin screw). Injection moulding: 200oC
IV. Notes:
·Use immediately after unpacking or stored in a dry, sealed container.
·Additives such as talcum powder, barium sulfate, calcium carbonate can affect the performance of flame retardant.
·Halogen additive can lower the property of flame retardant.
·CaCO3, ATH, MTH, carbon black and lubricant with silicon can affect the property of flame retardant.
·Some additives can be used during processing, such as: coupling agent, color master batch, toner, lubricant, dispersant etc.
